The Making of an Herbarium, Part IV

April 1, 2015

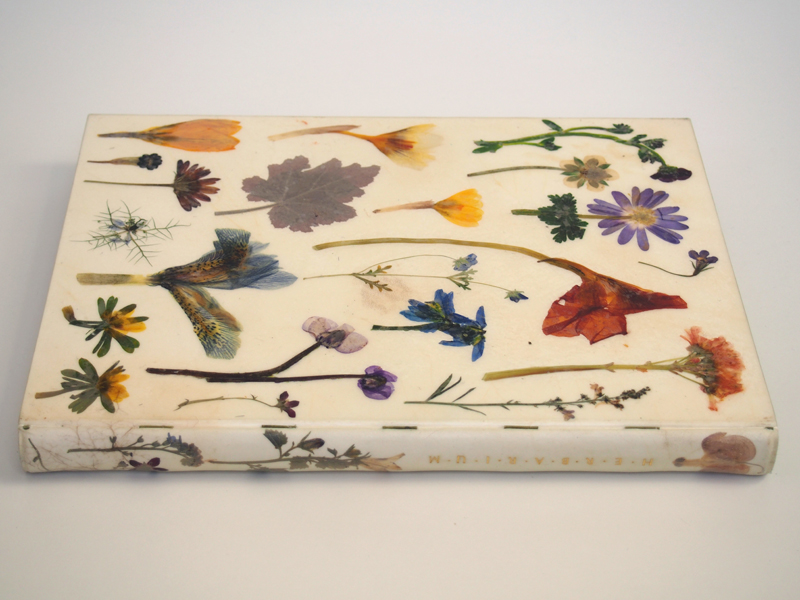

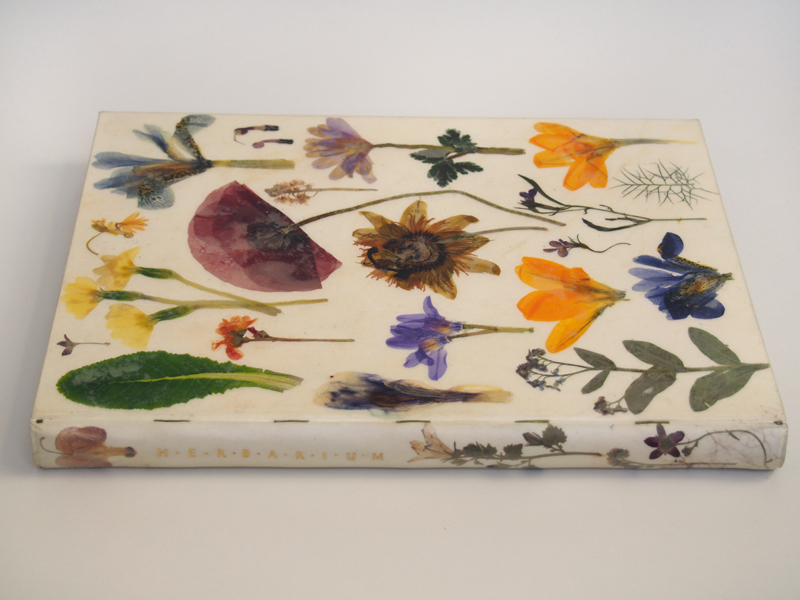

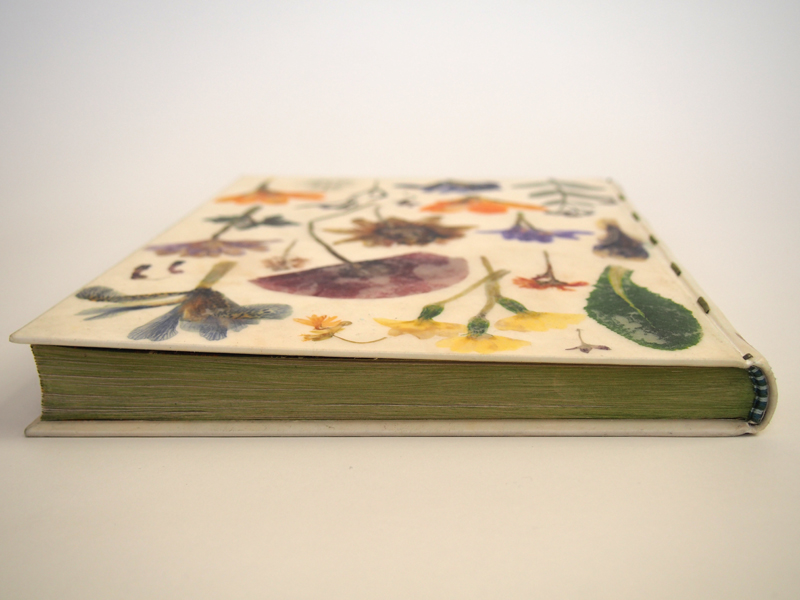

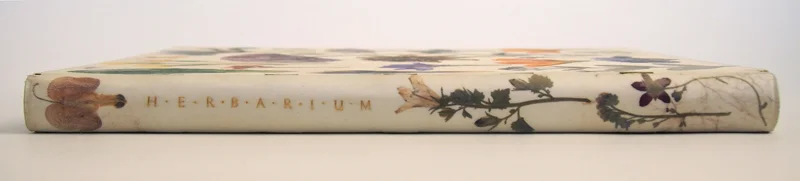

F I N I S H E D. A labor of love is still a labor. And when your covering material is so pricey, you don't exactly breathe easily while it's tight in the press, and you have no idea if it's going to work. But it did!

I only just made the connection but I had a flower press when I was a kid, a simple one with a wooden top and bottom, connected with four bolts & wingnuts in the corners, with cardboard and papers between. The lid had pressed flowers embedded in varnish—now this book reminds me of that.

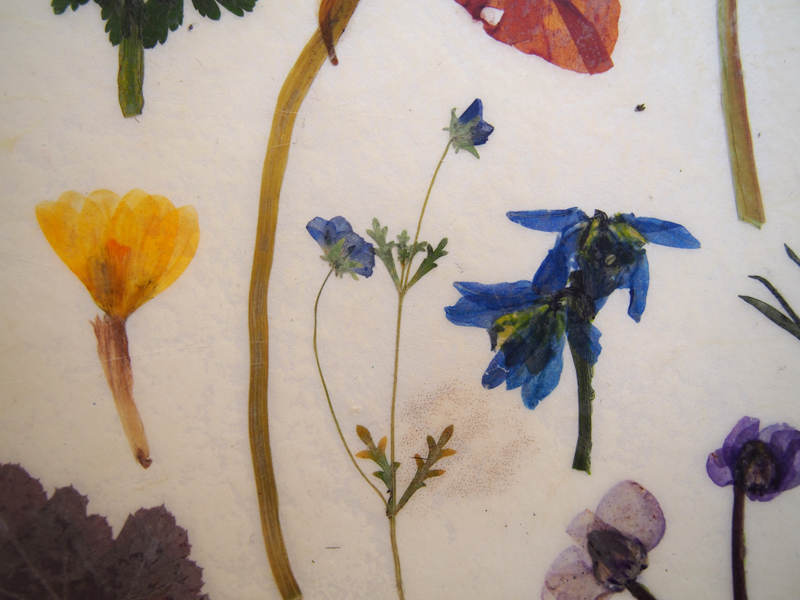

I suspect that the color in the flowers will not last forever, but hopefully longer than it would if they were exposed freely to the air and in direct sunlight. The purple in the anemone on the front board immediately turned a little brown in places just in the covering, though the one on the back hasn't. A little color leached out of one of the crocuses onto the paper behind it—I was expecting more of that, actually, since so much color comes off onto the blotters in the initial pressing.

The boards and endpapers have relaxed a lot since the casing in was finished, but not entirely yet, so forgive them that for now, & sniff at it later if they haven't gone down!

Some last photos from making it:

Herbarium DT 4.jpg
Starting to lay out the flowers
Starting to lay out the flowers
Pasting flowers to the spine
Pasting flowers to the spine
Pasting vellum to the spine
Pasting vellum to the spine

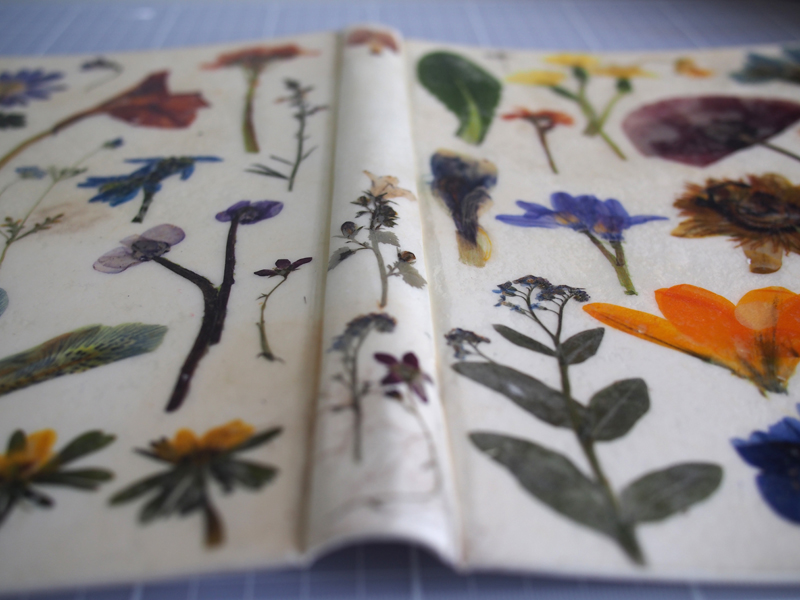

After the spine was rounded to fit the textblock
After the spine was rounded to fit the textblock
Casing in the textblock
Casing in the textblock

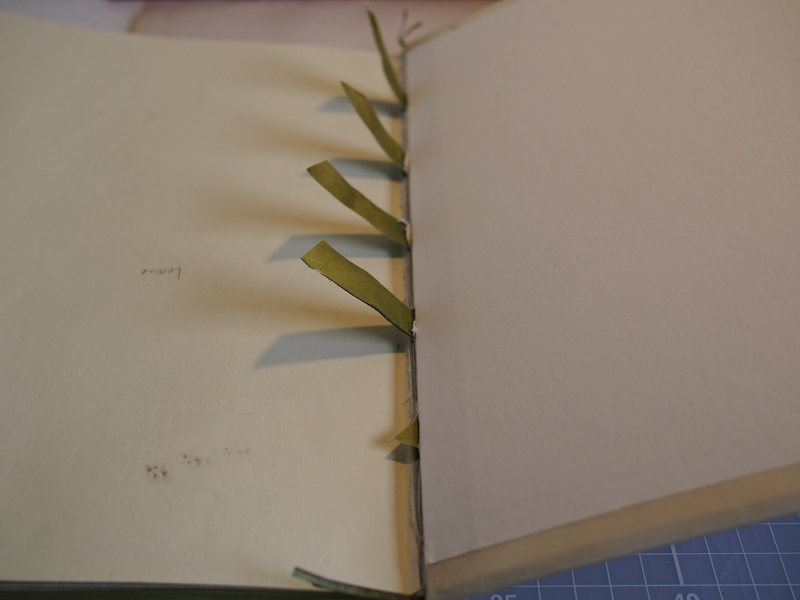

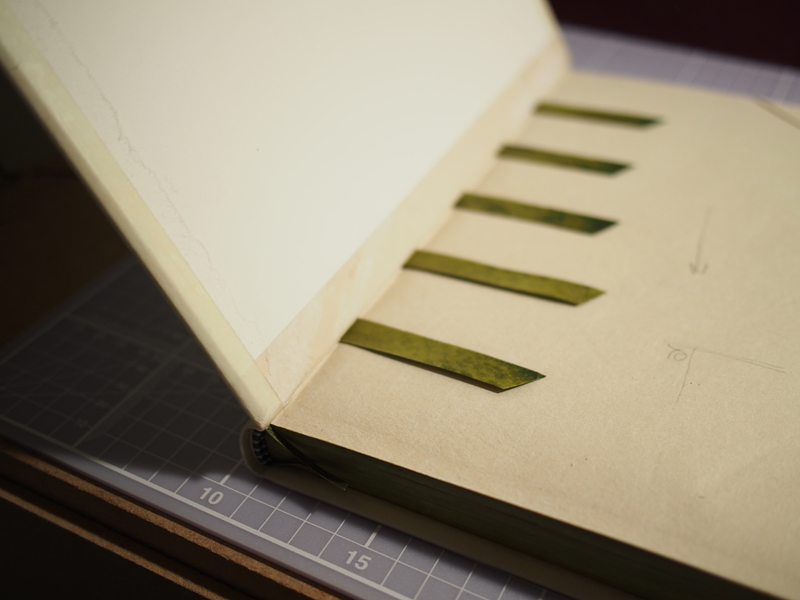

Slips inside the case
Slips inside the case

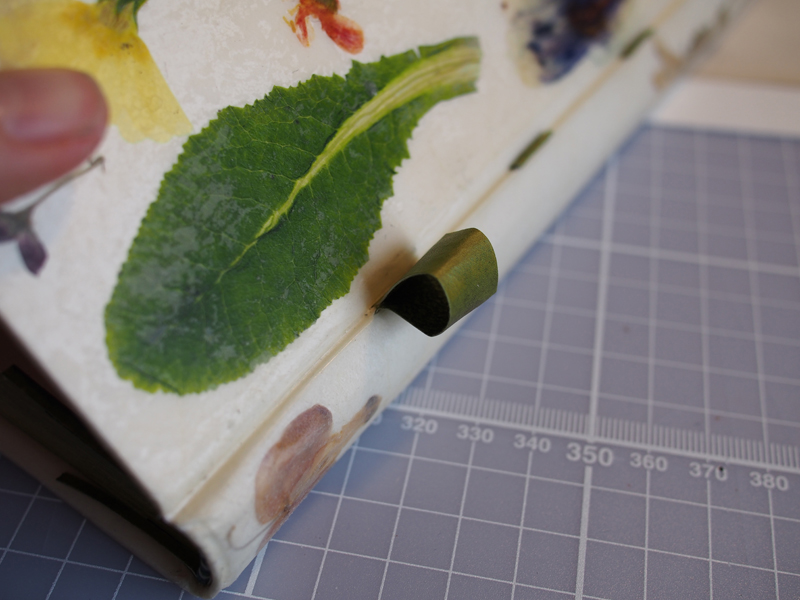

Lacing in the slips
Lacing in the slips
Lacing in the slips
Lacing in the slips
Lacing in the slips
Lacing in the slips
Cutting the slips & recessing them in the boards
Cutting the slips & recessing them in the boards
Setting up for tooling
Setting up for tooling

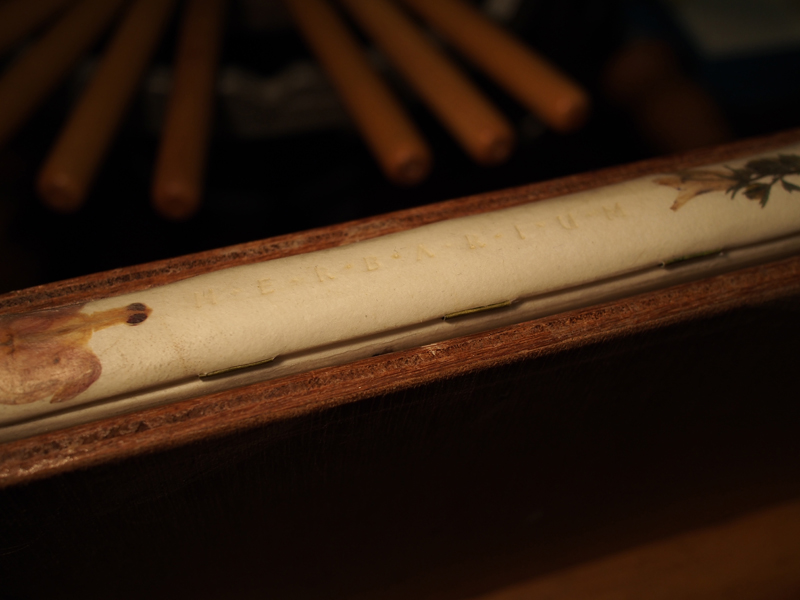

Putting the letters in blind first
Putting the letters in blind first

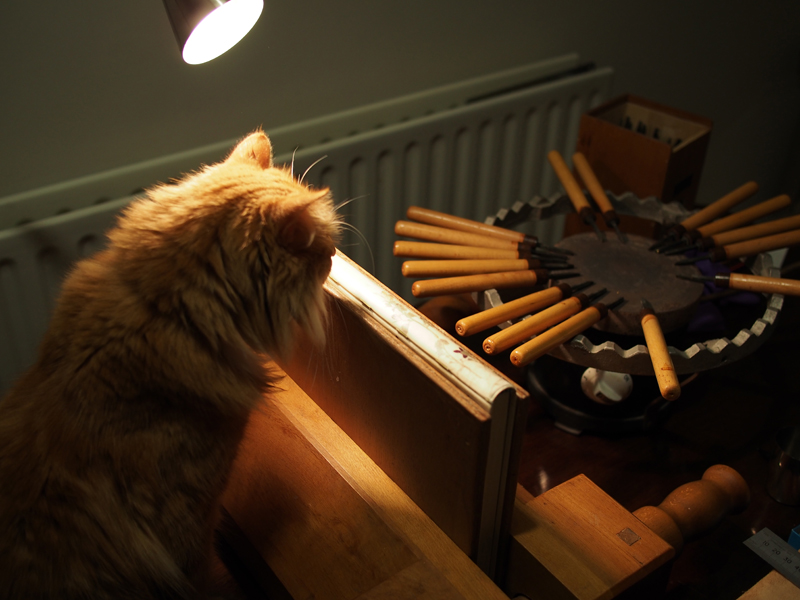

Toffle checks if they're straight
Toffle checks if they're straight
Tooling in gold
Tooling in gold
Herbarium DT 4.jpg Starting to lay out the flowers Pasting flowers to the spine Pasting vellum to the spine After the spine was rounded to fit the textblock Casing in the textblock Slips inside the case Lacing in the slips Lacing in the slips Lacing in the slips Cutting the slips & recessing them in the boards Setting up for tooling Putting the letters in blind first Toffle checks if they're straight Tooling in gold

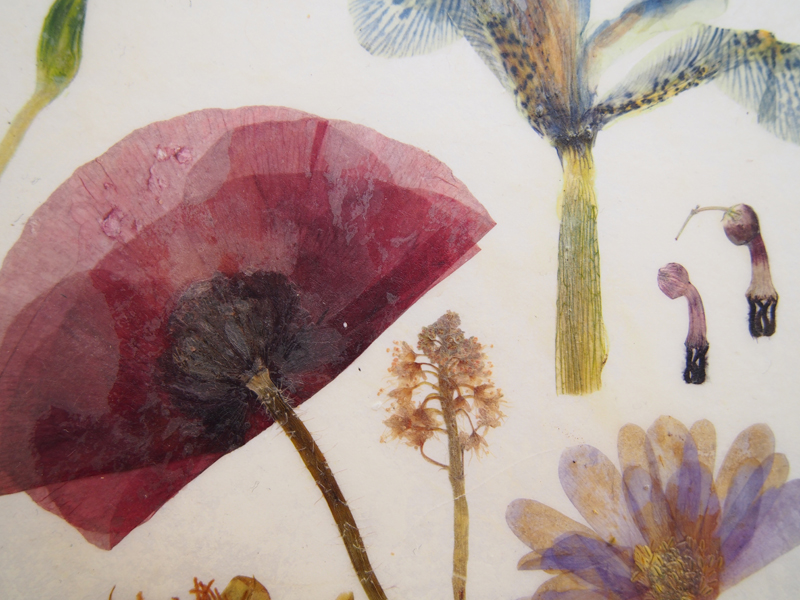

About the skin, because I anticipate questions: a technique for making transparent vellum was patented by Edwards of Halifax in 1785, though others had done it before in other ways. Halifax apparently soaked the skin in potassium carbonate (pearl ash), then dried it under tension/pressure. We learn to be careful of too much pressure on damp vellum, as well as heat, because of the risk of making it transparent. Well, when I tried the Halifax method, I got that skin wet, wet and warm, wet and hot, pressed tight, stretched tight, rubbed, rubbed harder, all to no avail. It was just as opaque as the day it was made, and no worse for wear either. Plan B was to make inset panels in a full vellum binding, for a snake's head fritillary on one side and the poppy used here on the other, but in the end I was set on my original idea, so I shelled out for a full transparent skin from Cowley. It was worth it.

Aside from a few spots where it is still opaque, this vellum is completely transparent. I could see the scratches in my cutting mat through it. I could see my fingerprints through it. Just a little on the yellow side, so I used a bright white paper to cover the case—the result is a slight creamy color that works well with the flowers. I decided to include the little bit shown above right, where the veins weren't completely drained. A reminder that the skin on the book used to be the skin on an animal.


Handmade flax & abaca paper: Chris Petrone, Women's Studio Workshop (US)

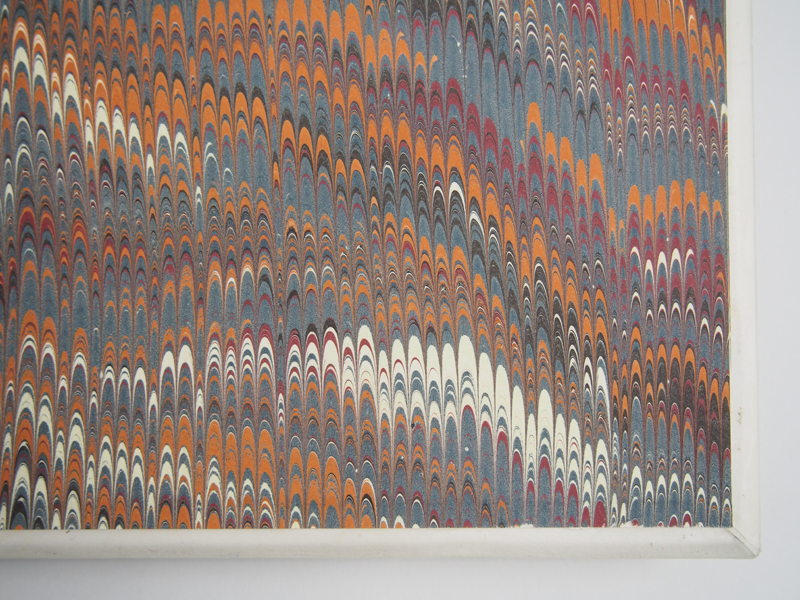

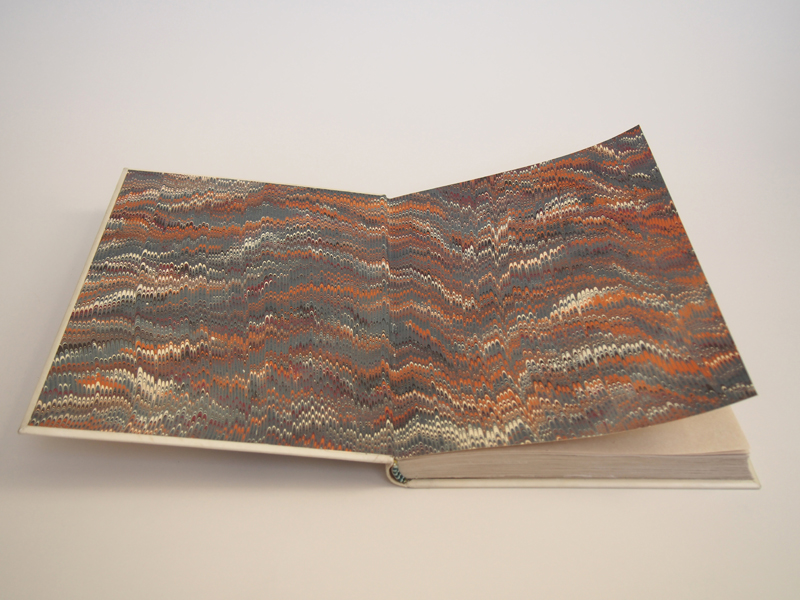

Marbled paper: Kate Bret, Payhembury (UK)
Normal vellum for sewing supports: Pergamena (US)
Transparent vellum for covering, alum taw for endbands: Cowley (UK)
Vellum over boards instructions: Peter Verheyen, Philobiblon
Pressed flowers: mostly from my roof & window boxes


In Bookbinding Tags Bookbinding, Case binding, Covering, Casing-in, Endbands, Parchment, Vellum, Handmade paper, Herbarium, Pressed flowers
